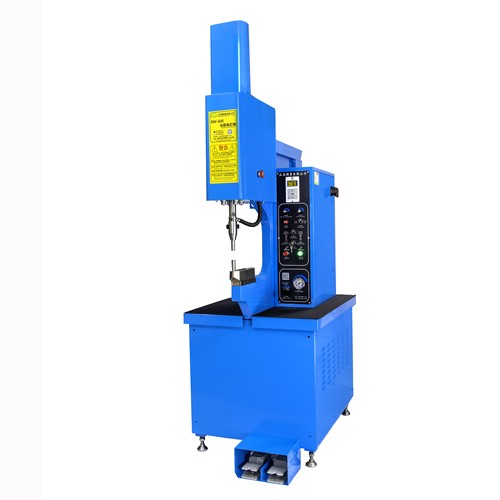

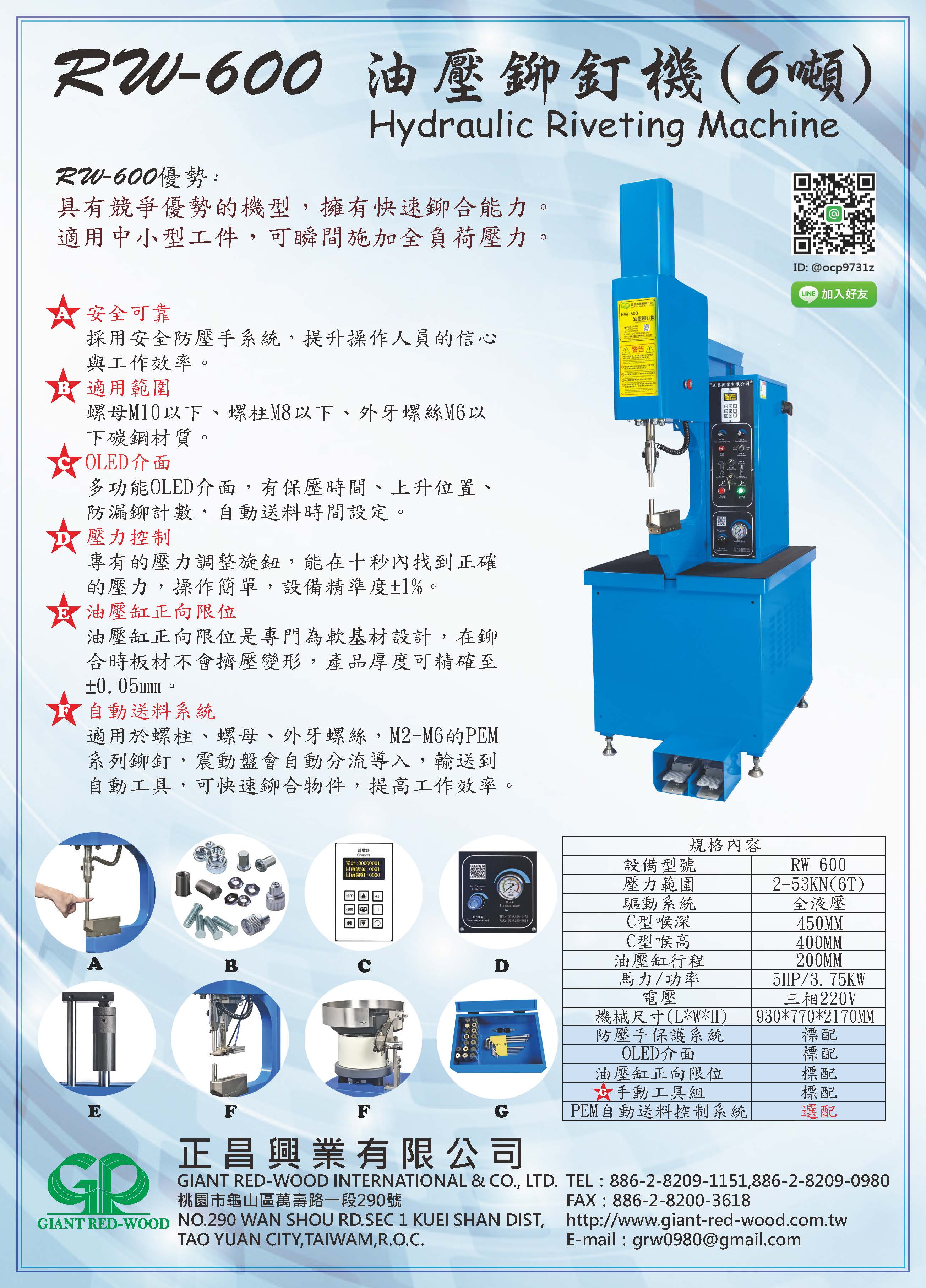

RW-600 hydraulic rivet machine
-
anti-pressure hand protection system -
riveting capacity: 6
tons of -
horsepower: 5HP throat depth
-
: 450mm C type throat
-
height: 400mm C type throat height
-
voltage: 220V
three-phase *OLED
interface -
multi-function OLED
interface, with pressure holding time, rise time, and leakage-proof rivet counter. *
Scope of application: -
riveting capability ( riveting of carbon steel press-rive fasteners below
nut M10
, stud M8
, screw M6
below screw M6 )
。 *
Safety and reliable: -
The use of a safe and anti-pressure hand system greatly improves the confidence and work efficiency of the operators, and there are no safety hazards. *
Pressure control operation: -
proprietary pressure test adjustment button, can find the correct riveting pressure in ten seconds, simple operation, equipment accuracy plus or minus 1%
。 *
Positive limit: -
The forward limit of the hydraulic cylinder is specially designed for soft substrates. The plate will not be extruded and deformed when riveted, and the product thickness can be accurate to ± 0.05mm
。
Sales method: manufacturing, cooperation, export
sales target market: Taiwan and Asia
Competitive characteristics
diverse design: Zhengchang Xingye Co., Ltd. provides the diversified design of RW-600 hydraulic rivet machine
RW-600 hydraulic rivet machine acceptance for original commissioned design ODM
RW-600 hydraulic rivet machine acceptance for original commissioned OEM
