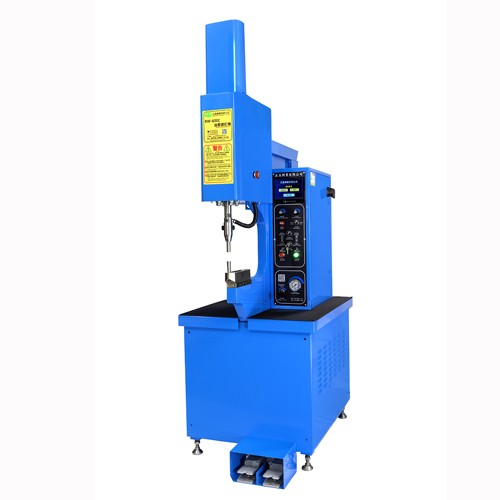

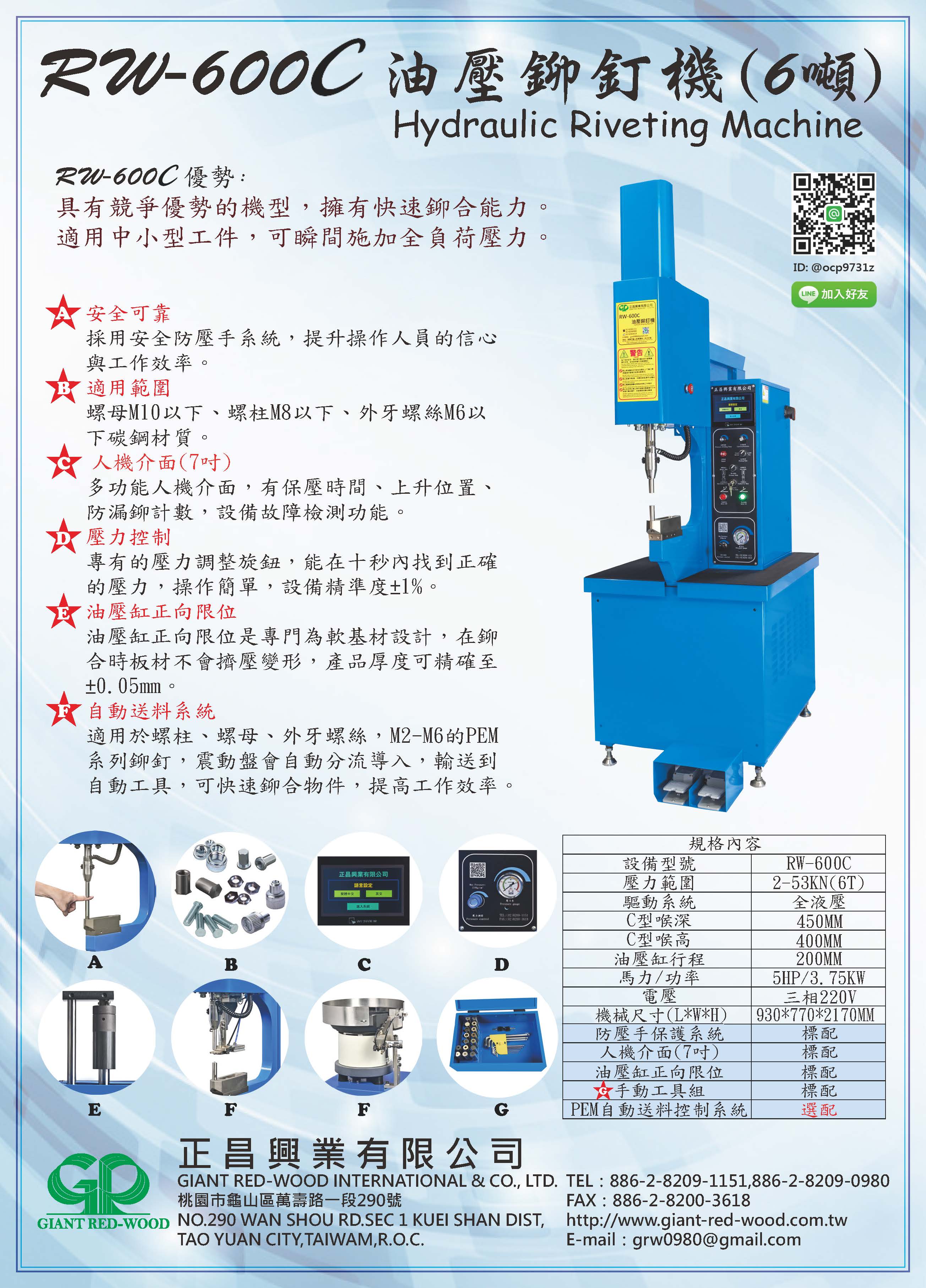

RW-600C hydraulic rivet machine

RW-600C hydraulic rivet machine
- anti-pressure hand protection system
- riveting capacity: 6 tons of
- horsepower: 5HP
- throat depth: 450mm   C type
- throat height: 400mm     C type throat height
- voltage: 220V three-phase

* 7- inch human-machine interface
 - multi-functional human-machine interface, with pressure holding time, rising position, leakage-proof rivet counting, and automatic detection of equipment failure.

* Scope of application: Suitable Rivet
 - rivet capability ( rivet from nut M10 , stud below M8 , screw M6 below screw ) 。
 - adopts a safety and anti-pressure hand system, which greatly improves the confidence and work efficiency of operators and has no safety hazards.

* Simple pressure control operation:
 - proprietary pressure test adjustment button, can find the correct riveting pressure in ten seconds, simple operation, positive and negative 1% of equipment accuracy 。


* Positive limit:
 - The forward limit of the hydraulic cylinder is specially designed for soft substrates. The plate will not be extruded and deformed when riveted, and the product thickness can be accurate to ± 0.05mm 。




Sales method: manufacturing, cooperation, export
sales target market: Taiwan and Asia

Competitive characteristics
diverse design: Zhengchang Xingye Co., Ltd. provides the diversified design of RW-600C hydraulic rivet machine
RW-600C hydraulic rivet machine acceptance for original commissioned design ODM
RW-600C hydraulic rivet machine acceptance for original commissioned OEM
