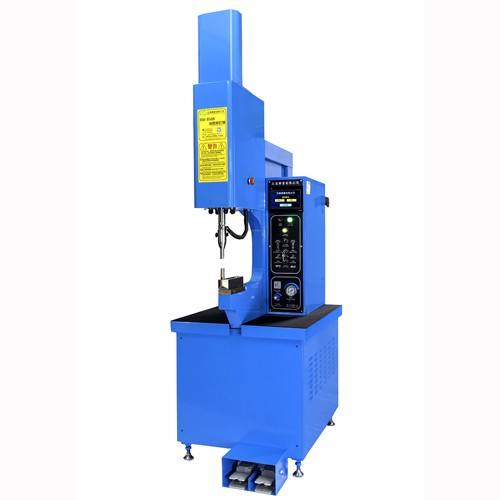

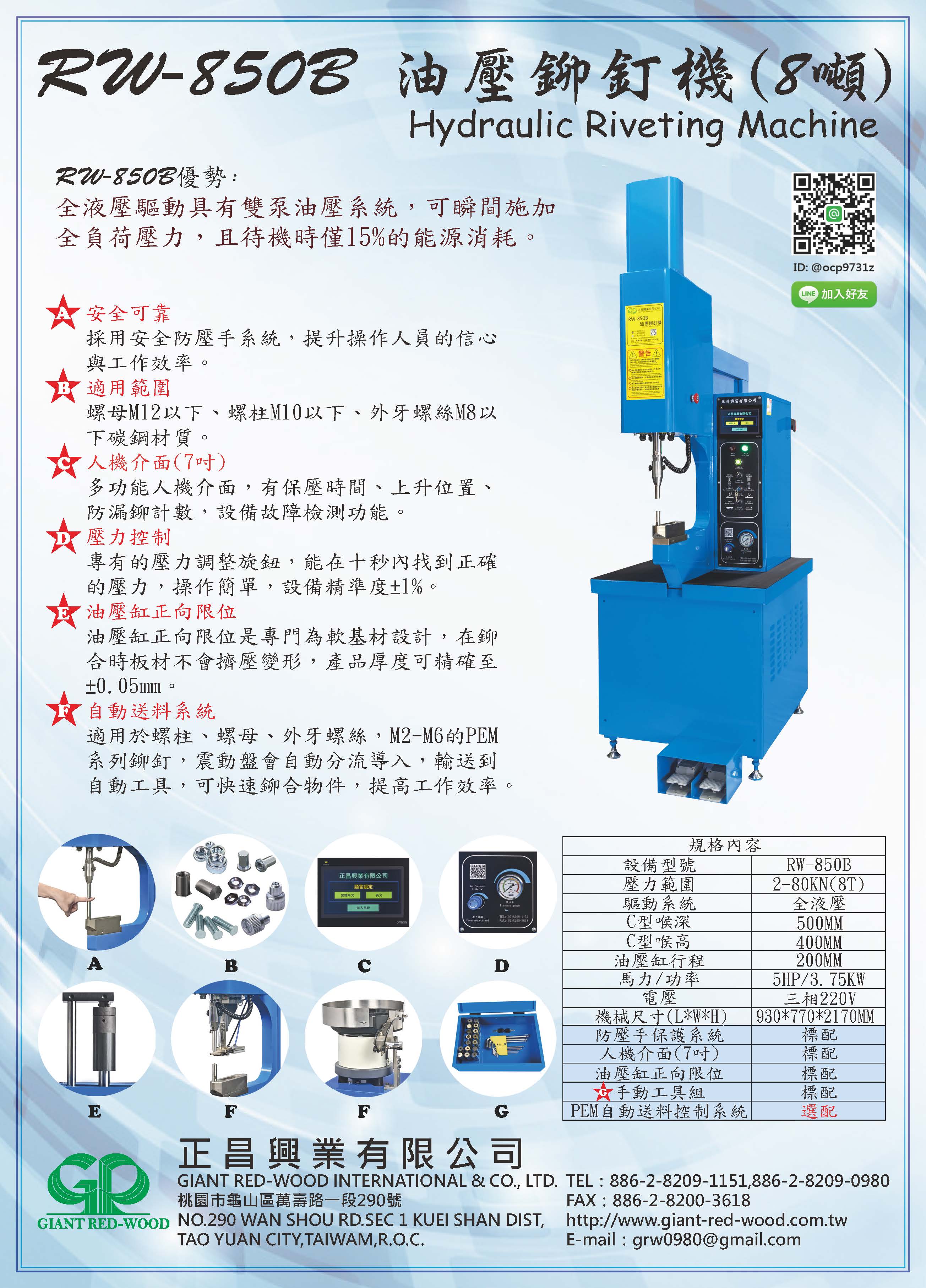

RW-850B hydraulic rivet machine
-
anti-pressure hand protection system -
proportional valve hydraulic control system -
dual pump hydraulic system -
complete leakage protection rivet counting -
riveting capacity: 8
tons of -
horsepower: 5HP throat depth
-
: 500mm C type throat depth
-
throat height: 400mm C type throat height
-
voltage: 220V
three-phase *
safe and reliable: -
adopting a safe anti-pressure hand system greatly improves the confidence and work efficiency of operators, and there are no safety hazards. *7-
inch human-machine interface 7'HMI
-
multi-function human-machine interface, with pressure holding time, rising position, complete leakage-proof rivet technology, automatic detection of equipment faults. *
Scope of application: -
riveting capability (
rigging of carbon steel pressure rivet fasteners below nut
M10 , stud
M8 , screw M6 below screw
M6 )
。 *
Proportional valve hydraulic control system -
proprietary proportional valve hydraulic control system, select rivet model riveting material pressure automatic generation simple operation equipment accuracy plus or minus 1%
。 minus 1%.
*
Forward limit: -
The forward limit of the hydraulic cylinder is specially designed for soft substrates. The plate will not be extruded and deformed during riveting, and the product thickness can be accurate to ± 0.05mm
。
Sales method: manufacturing, cooperation, export
sales target market: Taiwan and Asia
Competitive characteristics
diverse design: Zhengchang Xingye Co., Ltd. provides the diversified design of RW-850B hydraulic rivet machine
RW-850B hydraulic rivet machine accepted for original commissioned design and manufacturing ODM
RW-850B hydraulic rivet machine is accepted for OEM commissioned manufacturing
