Pressure range: | |
---|---|
Drive system: | |
C-row throat depth: | |
C-type throat height: | |
Hydraulic cylinder stroke: | |
Quantity: | |

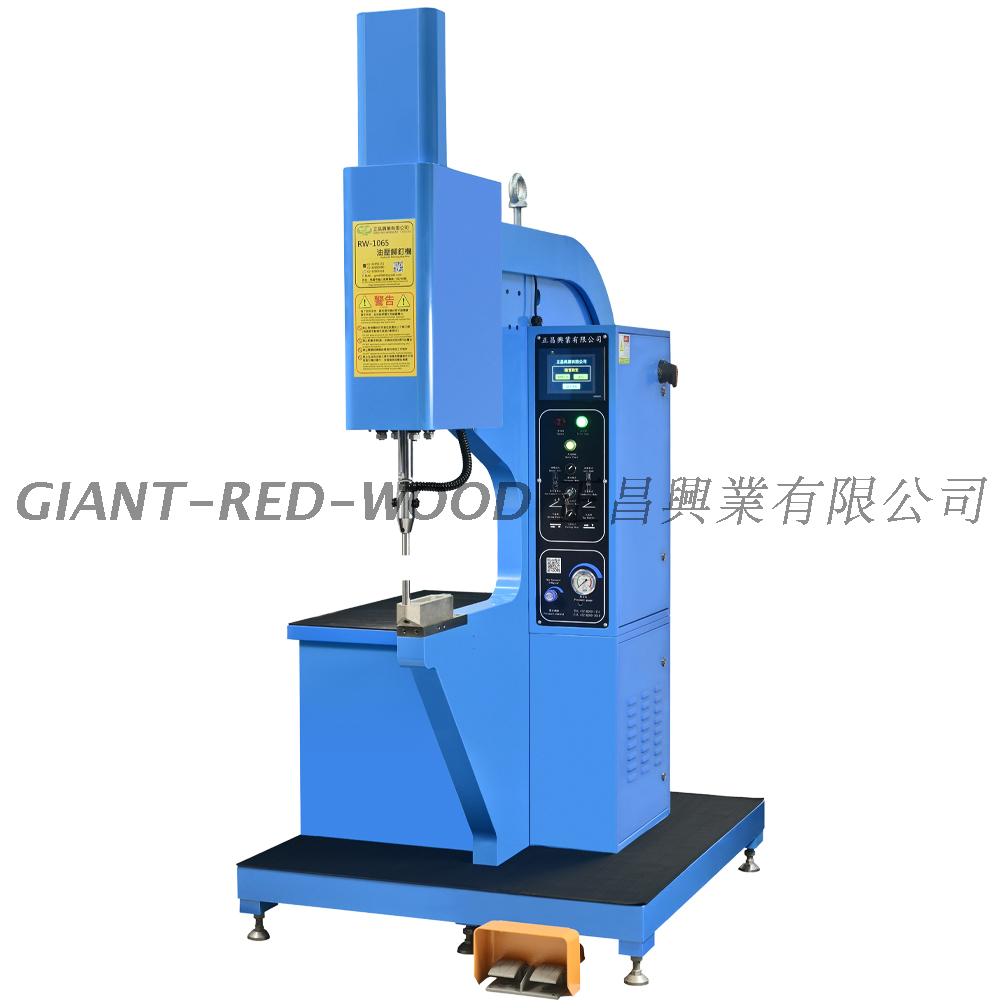

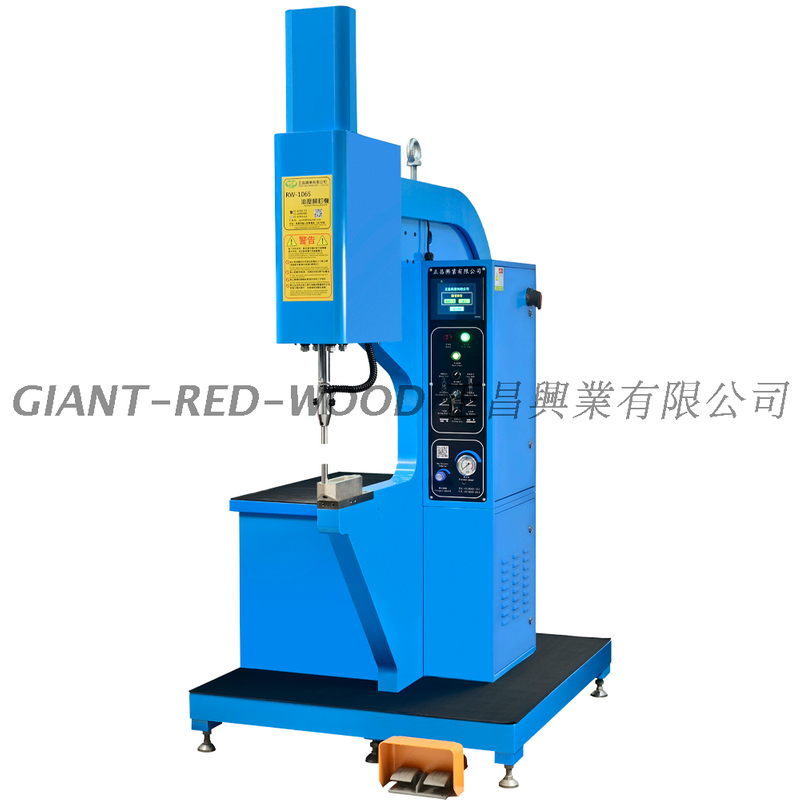

RW1065B
A. Safe and reliable | Adopt a safety and anti-pressure system to improve the confidence and work efficiency of operators. |
B. Scope of application | Carbon steel material is made of less than nut M12, stud M10, and outer screw M8. |
C. Human-machine interface (3.5 inches) | Multi-function human-machine interface, with pressure holding time, rising position, complete leakage-proof counting, and automatic detection of equipment failures. |
D. Pressure control | The proprietary pressure adjustment knob can find the correct pressure in ten seconds, it is easy to operate and the equipment accuracy is +/-1%. |
E. Forward limit of hydraulic cylinder | The forward limit of the hydraulic cylinder is specially designed for soft substrates, so the plate will not be extruded and deformed when riveted, and the product thickness can be accurate to +/-0.05mm. |
F. Automatic feeding system | Suitable for studs, nuts, external screws, M2-M6 PEM series rivets, the main board will be automatically diverted and introduced, and transported to automatic tools, which can quickly rivet objects and improve work efficiency. |
A. Safe and reliable | Adopt a safety and anti-pressure system to improve the confidence and work efficiency of operators. |
B. Scope of application | Carbon steel material is made of less than nut M12, stud M10, and outer screw M8. |
C. Human-machine interface (3.5 inches) | Multi-function human-machine interface, with pressure holding time, rising position, complete leakage-proof counting, and automatic detection of equipment failures. |
D. Pressure control | The proprietary pressure adjustment knob can find the correct pressure in ten seconds, it is easy to operate and the equipment accuracy is +/-1%. |
E. Forward limit of hydraulic cylinder | The forward limit of the hydraulic cylinder is specially designed for soft substrates, so the plate will not be extruded and deformed when riveted, and the product thickness can be accurate to +/-0.05mm. |
F. Automatic feeding system | Suitable for studs, nuts, external screws, M2-M6 PEM series rivets, the main board will be automatically diverted and introduced, and transported to automatic tools, which can quickly rivet objects and improve work efficiency. |
Pressure range Pressure | 2-97KN(10T) |
Drive System | Full Hydraulic |
Throat Deep | 650mm |
Throat Height | 450mm |
Cylinder Stroke | 200mm |
Horsepower/power | 5HP/3.75KW |
Voltage Volate | Three-phase 3Phase220V |
Mechanical size M/C Size | 1070*1558*2246mm |
Anti-pressure hand protection system Safety Device | Standard |
Man Machine Interface | Standard (4.2 Inches) |
Manual Tool Set | Standard |
PEM automatic feeding control system PEM Auto-Feeder System | Selection |
Pressure range Pressure | 2-97KN(10T) |
Drive System | Full Hydraulic |
Throat Deep | 650mm |
Throat Height | 450mm |
Cylinder Stroke | 200mm |
Horsepower/power | 5HP/3.75KW |
Voltage Volate | Three-phase 3Phase220V |
Mechanical size M/C Size | 1070*1558*2246mm |
Anti-pressure hand protection system Safety Device | Standard |
Man Machine Interface | Standard (4.2 Inches) |
Manual Tool Set | Standard |
PEM automatic feeding control system PEM Auto-Feeder System | Selection |
